Product Description

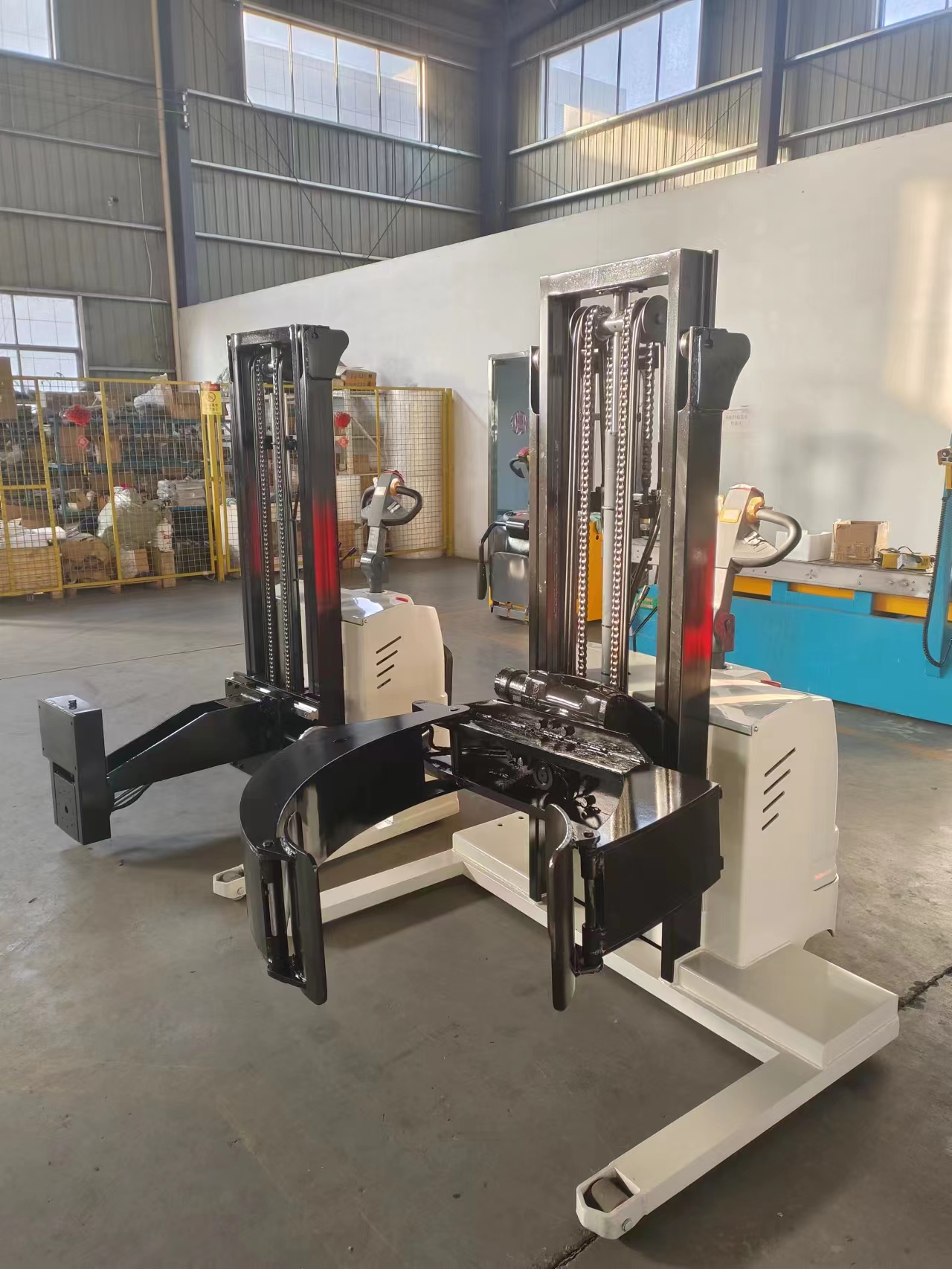

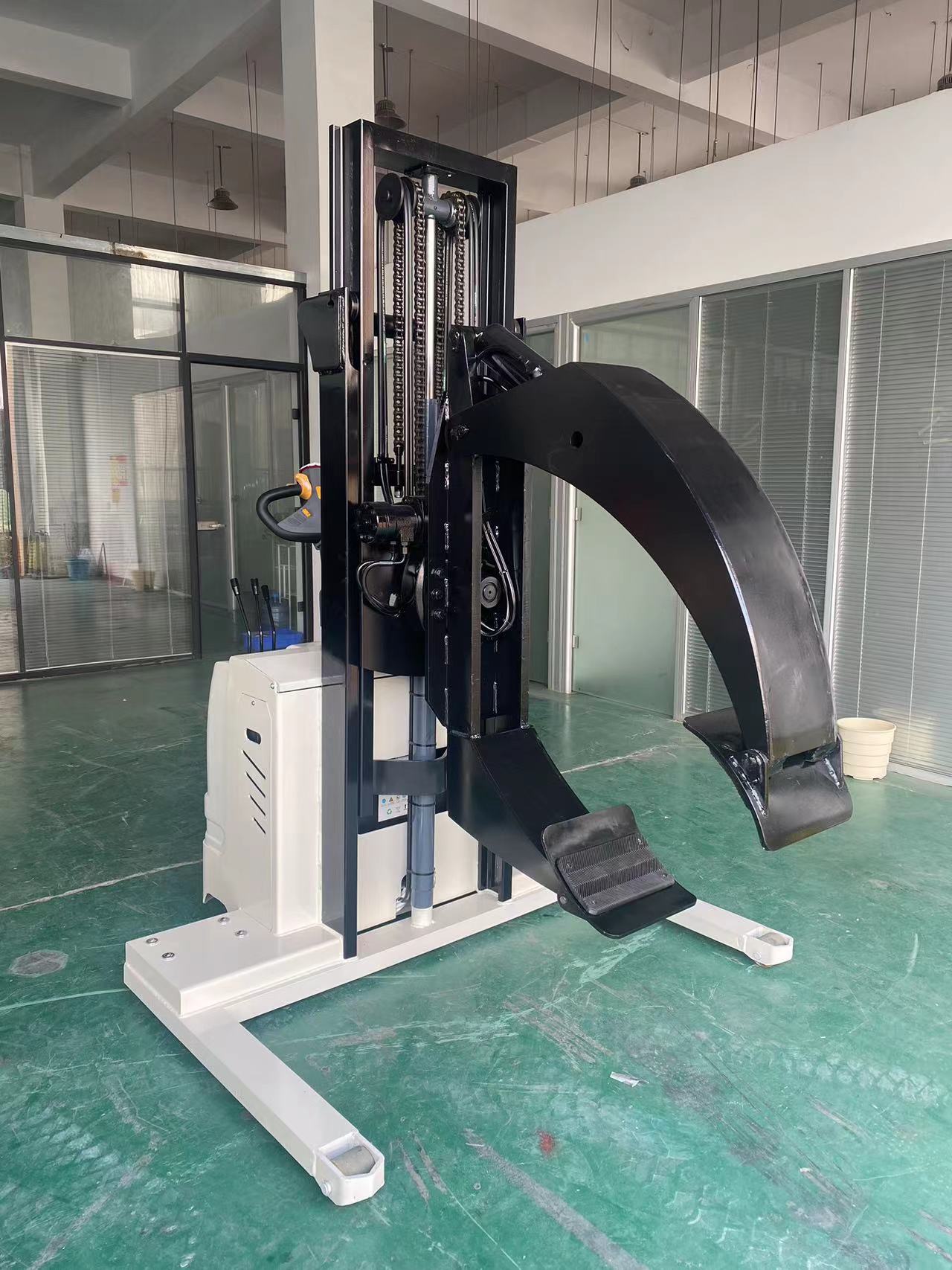

KAD Electric Paper Roll Clamping Stacker 500KG 1000 kg 0.5T 1T Paper Roll Reel Stacker with 360 Degree Rotation
Electric paper roll stackers are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.
Main Features
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
Specification
| Rated load | kg | 500/1000/1500 |
| Max height of clamp | mm | 1500/3000/customized |
| Min height of clamp | mm | 100 |
| Load center | mm | 500 |
| Operation way | | Electric moving, lifting, rotating, graping |
| Turning radius | mm | 1520 |
| Aisle width | mm | 2500 |
| Length | mm | 1900 |
| Width | mm | 810 |
| Height | mm | 1900 |
| Mast | | 1-stage/2 stage |
| Adjustable extent of clamp | mm | 700-1200 |
| Rotation angle | ° | 90/180/360 |
Running speed (load/unload) | km/h | 4.3/4.5 |
| Hoisting speed(load/unload) | mm/s | 110/160 |
| Descent speed(load/unload) | mm/s | 150/130 |
| Climbing capability
(load/unload) | % | 5/8 |
| Braking mode | | Electronic brake |
| Tyres,material | | Pu |
| Hydraulic motor | kw | 2.5kw |
| Battery | v/ah | 24/210Ah |
| Charger | v/a | 24v/30 |
| Weight | kg | 1000 |
What are the common forklift attachments?
Paper roll clamp : adjustable short-arm type; fixed short-arm type paper roll clamp can stop the paper roll efficient, safe, non-destructive handling and stacking operations, and can be clamped on the continuation of the 360-degree rotation of the paper roll. Convenient for paper roll exchange operation. Commonly used in papermaking, carton, packaging, printing, port and other industries to stop all kinds of paper rolls without pallet handling and stacking.
General attachments: soft package clamps, multi-purpose flat clamps, carton clamps, barrel clamps, brick clamps, etc. The most representative of the general class clamps are soft package clamps, soft package clamps can be safe and efficient handling of all kinds of soft packages, such as cotton, textiles, wool, pulp, paper, hay, and industrial debris, such as soft packages of goods. Suitable for paper, textile, chemical fibre, waste paper recycling and other industries to stop all kinds of paper rolls without pallet handling and stacking.
Rotator :Rotator can be required to rotate or turn the container and items to stop the 360-degree speed flip, commonly used in food, chemical, sanitation, recycling, smelting and casting industries.
Pallet handling attachments: the side shifter is the most commonly used attachment in forklift trucks. The side shifter assists in lateral shift of the goods on the forks, which greatly improves the flexibility and efficiency of the forklift. It is suitable for all kinds of forklift operations.
Palletless handling attachments: carton clamps, pusher and puller, pusher and launcher are suitable for bagged goods such as fertiliser, feed, grain flour, salt and cement.
The above are more common forklift attachments and their respective roles are different, reasonable use can greatly enhance efficiency.
