New 500-1500 Kg Load Capacity Electric Pallet Lift Stacker Electric Stacker With Paper Roll Clamp

  • 1
  • 2

Brand Name : KAD

Model Number : RD070BJ-15

Certification : CE

Place of Origin : China

MOQ : 1unit

Price : $4000-$6000 /unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50units/month

Delivery Time : 15 working days

Packaging Details : Iron pallet+plastic film

Color : Green/Red/Yellow/Customized

Tire : PU Wheel

Load Center : 500mm

Turning radius : 1520mm

Load weight : 500-1500kg

Load height : 1500-3000mm/customized

Battery Cpacity : 24V/80Ah

Feature : High Efficiency

Contact Now

Product Description

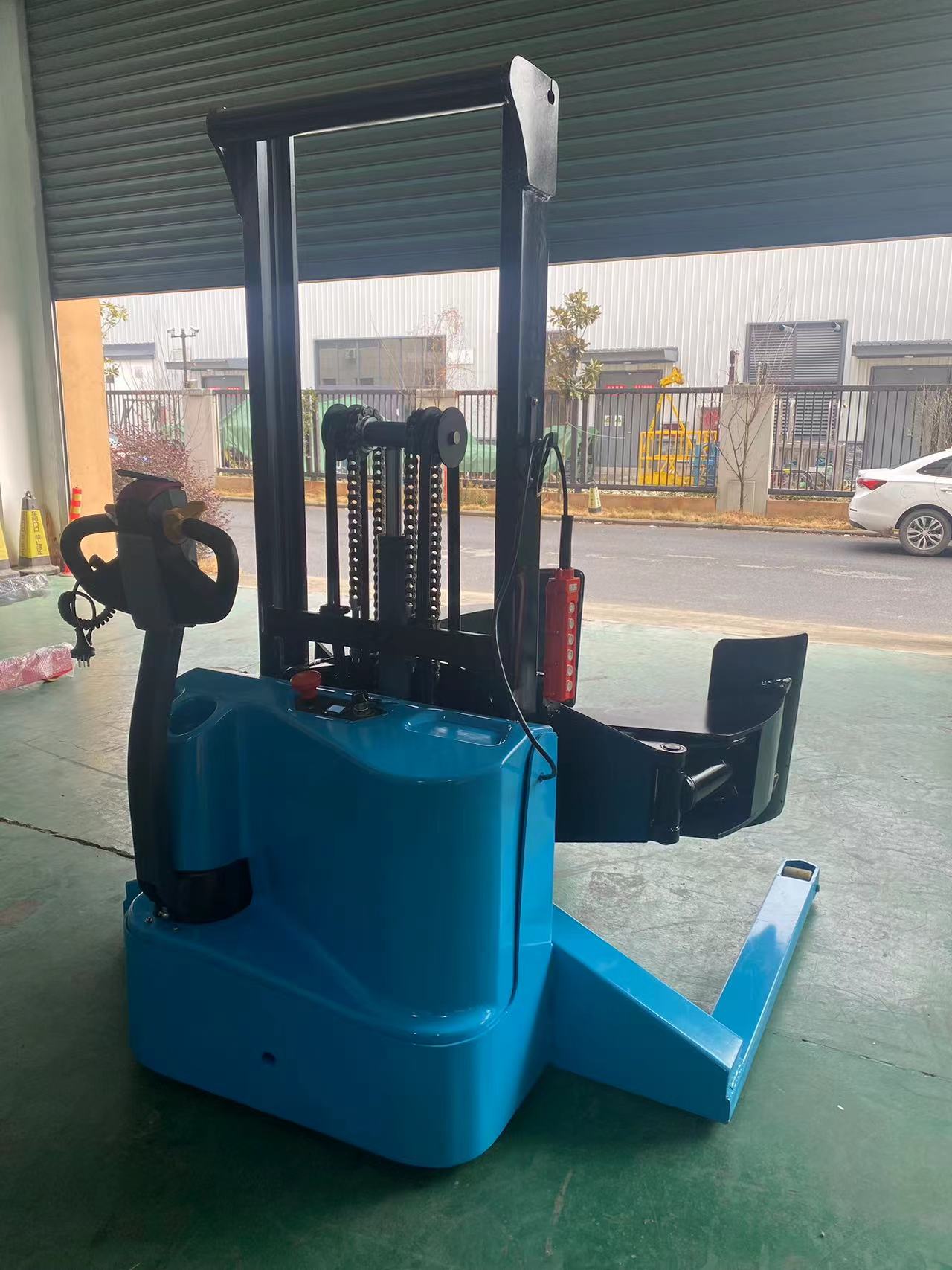

New 500-1500 kg load capacity electric pallet lift stacker electric stacker with paper roll clamp

Electric paper roll stackers are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.

New 500-1500 Kg Load Capacity Electric Pallet Lift Stacker Electric Stacker With Paper Roll Clamp

New 500-1500 Kg Load Capacity Electric Pallet Lift Stacker Electric Stacker With Paper Roll Clamp

Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.


4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.

Specification
Rated load
kg
500/1000/1500
Max height of clamp
mm
1500/3000/customized
Min height of clamp
mm
100
Load center
mm
500
Operation way
Electric moving, lifting, rotating, graping
Turning radius
mm
1520
Aisle width
mm
2500
Length
mm
1900
Width
mm
810
Height
mm
1900
Mast
1-stage/2 stage
Adjustable extent of clamp
mm
700-1200
Rotation angle
°
90/180/360
Running speed (load/unload)
km/h
4.3/4.5
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
(load/unload)
%
5/8
Braking mode
Electronic brake
Tyres,material
Pu
Hydraulic motor
kw
2.5kw
Battery
v/ah
24/80Ah
Charger
v/a
24v/30
Weight
kg
1000

The significance of the use of forklift attachments:

1.High productivity, low operating costs.

Mechanized handling than the traditional manpower handling operations work short, while reducing the income and cost of labour, and improve the efficiency. In the same handling cycle, the number of forklift initiatives significantly lower, forklift corresponding tyres, transmission gears, fuel consumption, etc. are also reduced accordingly, the operating costs are also reduced accordingly.

2.Safe and reliable operation reduces the accident rate.

Forklift attachments designed and consumed by professional forklift attachments manufacturers for different industrial conditions are designed with safety devices, so that the goods clamped (or forked) are not easy to slide down in abnormal conditions, such as the pressure-retaining installation of clamping attachments (the oil pipe bursts when the goods are loaded, and the hydraulic fracture maintains the pressure so that the goods will not slide down); the end buffer installation of sidetransferring attachments, etc, which reduces the rate of accidents.

3.Little loss of goods.

With the help of the fixtures unique clamping, side shift, rotation and other functions, the goods can be more safely transported or stacked high or loading and unloading, and thus minimise the level of loss of goods. The use of attachments also reduces the frequency of pallet use (e.g. no pallet handling operations), its corresponding marketing and maintenance costs.

The above points are the benefits of using forklift attachments, so it is more appropriate to use forklift attachments if necessary.
