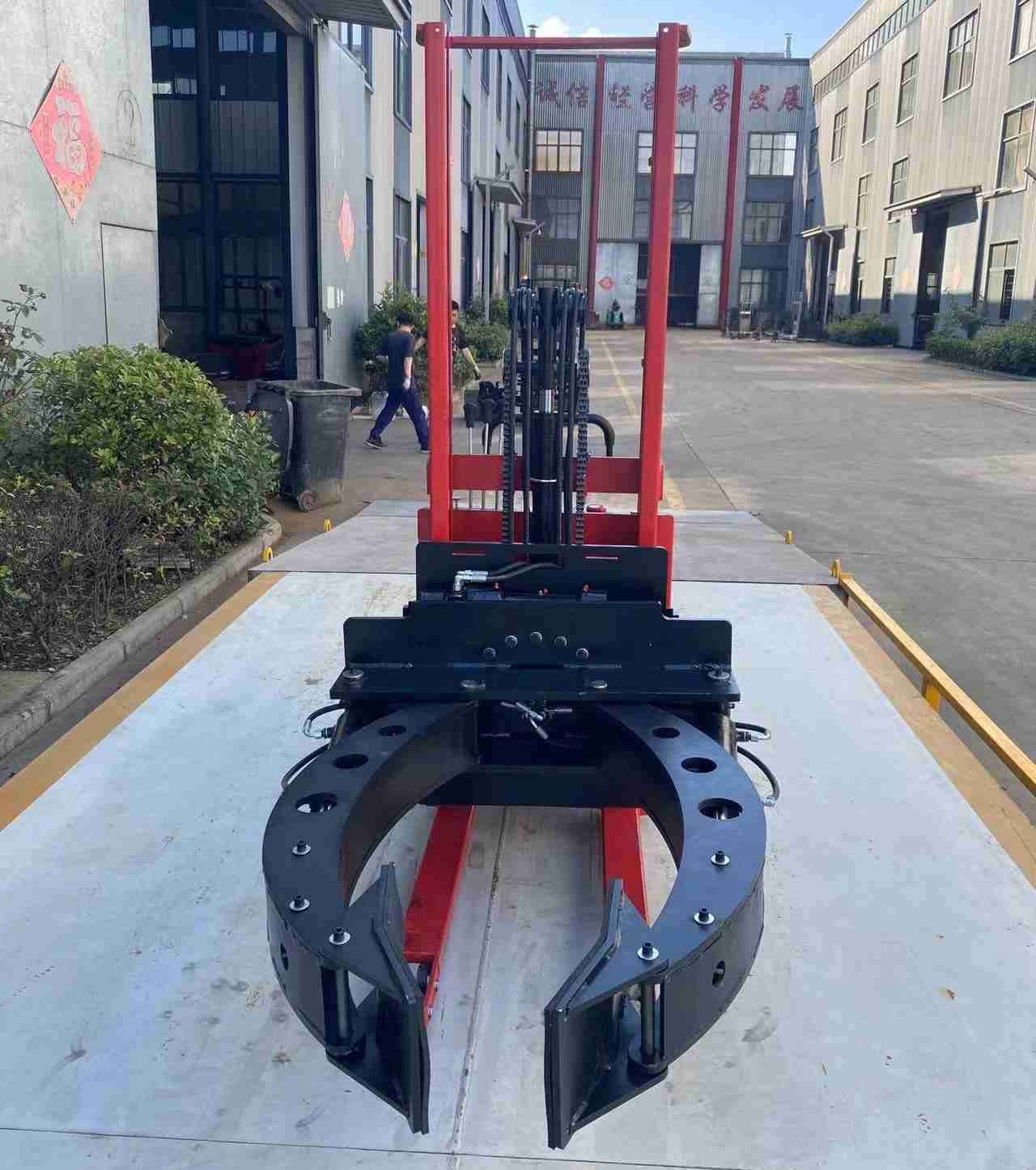

350kg 772lb 6.56ft 2meters Semi Electric Roll Stacker Paper roll lifter for handling paper roll materials
The Semi Electric Roll Stacker offers a unique blend of efficiency and versatility. With its electric motor assisting the lifting mechanism, it significantly reduces physical effort for operators, making it an ergonomic solution for warehouses and distribution centers. Its semi-electric design allows for seamless integration with manual handling tasks, balancing automation with the flexibility to adapt to different work environments. Moreover, it enhances safety by minimizing the risk of accidents during heavy lifting and stacking operations. The compact design ensures easy maneuverability in tight spaces, while its capacity to handle varied loads makes it a cost-effective investment for businesses looking to optimize their material handling processes. In summary, the Semi Electric Roll Stacker is a smart choice for improving productivity, safety, and overall operational efficiency.
Main Features
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
Specification
| power source | | Battery |
| rated load | kg | 250/300/500 |
| load center | mm | 500 |
| operation way | | Standing operation,electric lifting,electric gripper,electric rotating,manual moving |
| turning radius | mm | 1050 |
| aisle width | mm | 1900 |
| length | mm | 1500 |
| width | mm | 760 |
| height | mm | 2100 |
| mast | | 1-stage mast |
| adjustable extent of clamp | mm | 200~1250 |
| max height of forks | mm | 1500 |
| min height of forks | mm | 200 |
| rotation angle | ° | 90°(left and right) |
| running speed(load/unload) | km/h | manual |
| hoisting speed(load/unload) | mm/s | 110/160 |
| descent speed(load/unload) | mm/s | 150/130 |
| climbing capability | % | 3,5 |
| braking mode | | Wheel brake |
| tyres,material | | Nylon |
| load wheel dimensions | mm | 85*80,2pcs |
| steering wheel dimensions | mm | 180*50,2pcs |
| hydraulic motor | kw | 12v/2.2kw |
| battery | v/ah | 12/120 |
| charger | v/a | 12/15, |
| weight | kg | 450 |
