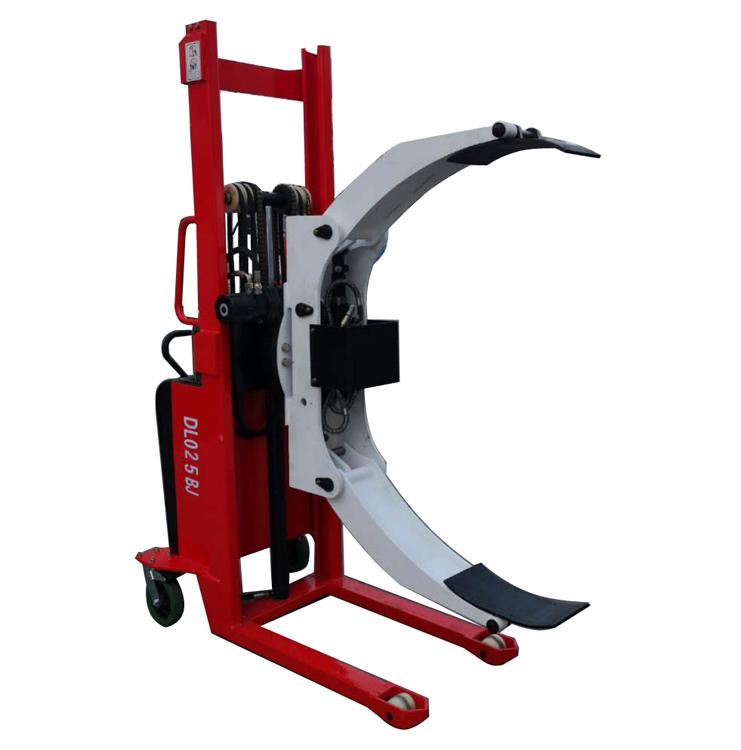

Semi electric roll stacker with clamp rotated 90 180 360 degree for chemical industry
The clamp semi electric stacker offers significant advantages for specialized material handling. Its semi-electric design provides powered lifting while allowing precise manual control for maneuverability. The integrated clamp ensures secure handling of awkward or delicate loads, preventing damage during transport. This flexibility is ideal for industries dealing with fragile or irregular items. The stacker's compact structure enables easy operation in tight spaces, optimizing storage and workflow in crowded environments. Additionally, it features low maintenance needs and durable construction, ensuring reliable long-term performance. This blend of efficiency, safety, and versatility makes it an invaluable asset in various industrial settings.
Main Features
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
Specification
| power source | | Battery |
| rated load | kg | 250/300/500 |
| load center | mm | 500 |
| operation way | | Standing operation,electric lifting,electric gripper,electric rotating,manual moving |
| turning radius | mm | 1050 |
| aisle width | mm | 1900 |
| length | mm | 1500 |
| width | mm | 760 |
| height | mm | 2100 |
| mast | | 1-stage mast |
| adjustable extent of clamp | mm | 200~1250 |
| max height of forks | mm | 1500 |
| min height of forks | mm | 200 |
| rotation angle | ° | 90°(left and right) |
| running speed(load/unload) | km/h | manual |
| hoisting speed(load/unload) | mm/s | 110/160 |
| descent speed(load/unload) | mm/s | 150/130 |
| climbing capability | % | 3,5 |
| braking mode | | Wheel brake |
| tyres,material | | Nylon |
| load wheel dimensions | mm | 85*80,2pcs |
| steering wheel dimensions | mm | 180*50,2pcs |
| hydraulic motor | kw | 12v/2.2kw |
| battery | v/ah | 12/120 |
| charger | v/a | 12/15, |
| weight | kg | 450 |
