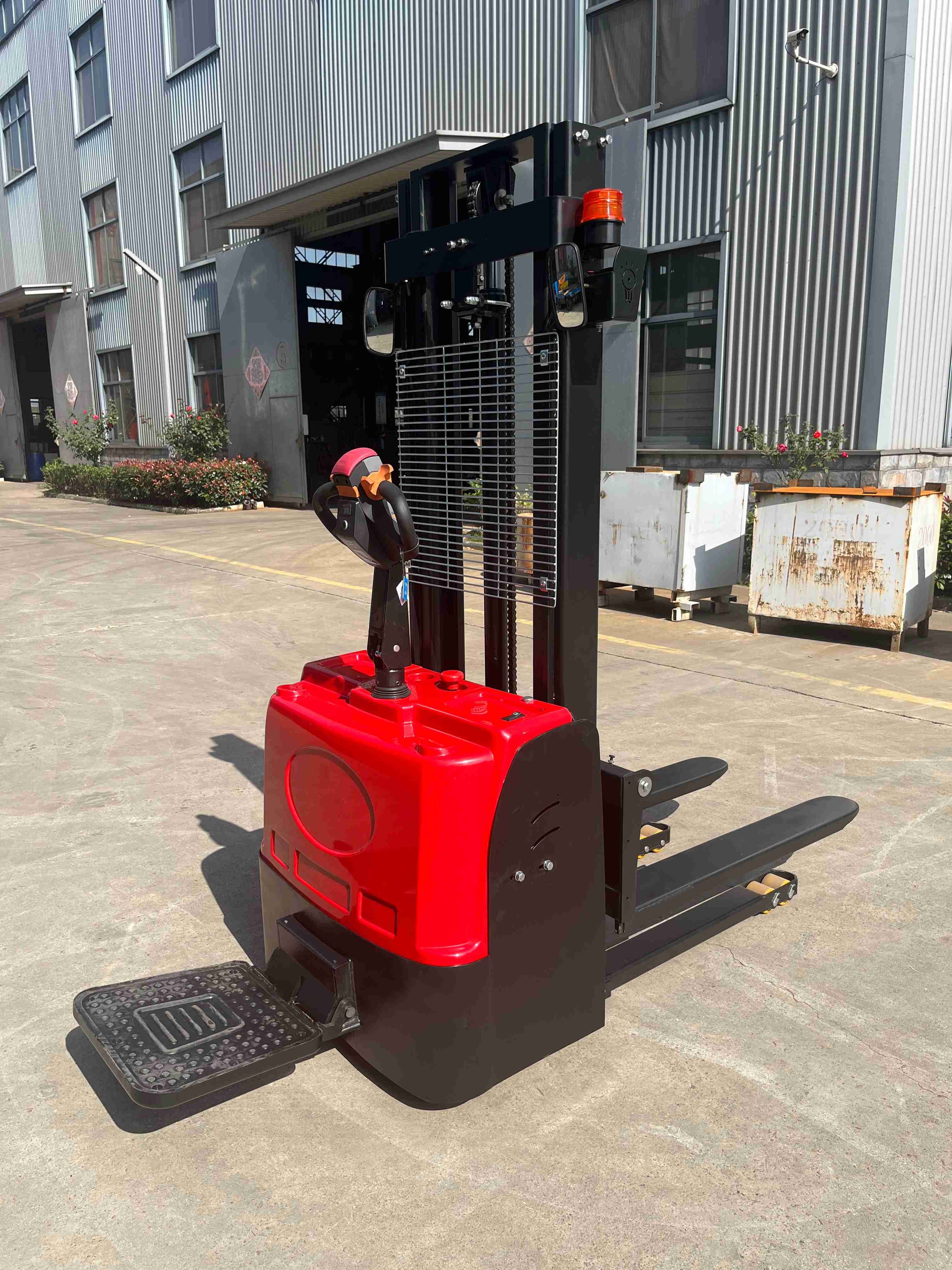

Double Lift Electric Pallet Stacker 1 Ton 1000kg 1.5 Tons 1500kg Ride On

Taizhou Kayond Machinery Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Double Lift Electric Pallet Stacker 1 Ton 1000kg 1.5 Tons 1500kg Ride On

Brand Name : KAD

Model Number : CDDL

Certification : CE

Place of Origin : China

MOQ : 1unit

Price : $2200/UNIT

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 50units/month

Delivery Time : 7work days

Packaging Details : iron pallet +plastic film

Product name : electric walkie stacker

Load Capacity : 1200/1600

Lift Height : 1600/200012500/3000

Length : 1770

Wdith : 850

Battery Capacity : 2*7012*80

Contact Now

Double Lift 1ton 1000kg 1.5tons 1500kg Electric Ride On Stacker Pallet Stacke

Product Description

  • High-Efficiency Double Lift Electric Stacker — Smart Handling Redefined

    Double Lift Advantage
    Our advanced electric stacker features a dual-lift system, allowing simultaneous lifting of both forks and mast. This unique design significantly speeds up stacking processes, making it ideal for high-throughput operations where time and precision are critical.

    Superior Efficiency

  • Dual-Lift Boost: Lifting and adjusting at the same time increases handling speed by up to 30% compared to traditional single-lift models.

  • Optimized for Tight Spaces: Compact body with excellent maneuverability makes it perfect for narrow aisles and high-density storage.

  • Cost-Effective Performance

  • Lower Energy Costs: Powered by high-efficiency electric motors, reducing energy consumption and long-term operational expenses.

  • Labor Savings: Higher efficiency means less handling time per pallet, reducing workforce requirements.

  • Eco-Friendly Operations

  • Zero Emissions: Fully electric drive system produces no exhaust gases, ideal for clean-room environments like food, pharmaceuticals, and electronics.

  • Quiet Operation: Low noise ensures a more comfortable and productive workspace.

  • Uncompromised Safety

  • Smart Safety Features: Equipped with automatic braking, anti-roll-back systems, and load sensors to ensure safety in every operation.

  • User-Friendly Interface: Simple controls and ergonomic handles minimize operator errors and improve ease of use.

  • Ergonomic Cabin Design: Reduced vibrations and fatigue for long shifts, increasing overall productivity.

  • All-Round Visibility: Clear view mast and thoughtful layout for safer maneuvering.

  • Smarter Technology

  • Real-Time Monitoring: Integrated control systems provide live performance data, error alerts, and battery status.

  • Remote Management (Optional): For advanced models, remote diagnostics and fleet management tools are available.

  • Simplified Maintenance

  • Easy Access Design: Tool-free access to battery and electrical components for quick servicing.

  • Low Failure Rate: Fewer mechanical parts mean reduced downtime and maintenance costs.

  • Operator Comfort

  • Double Lift Electric Pallet Stacker 1 Ton 1000kg 1.5 Tons 1500kg Ride OnDouble Lift Electric Pallet Stacker 1 Ton 1000kg 1.5 Tons 1500kg Ride On

Model
CDD1030
CDD1530
Load Capcity
kg
1000
1500
Lifting Height
mm
1600
1600
Load Center
mm
500
500
Fork Size
mm
1220*100*40
1220*100*40
Ground Clearance
mm
130
130
Pedal Length
mm
410
410
Handler Heihgt
mm
1490
1490
Outer Distance Between Forks
mm
685
685
Inner Distance Between Forks
mm
345
345
Tyre type
Polyurethane
Polyurethane
Control Way
Handler
Handler
Speed Regulation Way
Stepless Speed Regulation
Stepless Speed Regulation
The Min. Turning Radius
mm
1500
1500
Driving Speed with Full Loads
km/h
4
4
Gradient
°
10
10
Battery
V/Ah
24V/180A
24V/180A
Driving Motor
KW
1.2
1.2
Lifting Motor
KW
2.2
2.2
Tyre Size
mm
300/250
300/250
Overall Size
mm
2170*1570*2100
2170*1570*2100
Weight
kg
900
900
Reference Working Time
h
6
6
Increased height each tonnage
mm
1600/2000/2500/3000/3500
Max height
2100/1600/1850/2100/2350

Smart Choice for Small Spaces — Lightweight & Flexible Stacker

Compact Yet Capable
Our lightweight stacker truck is designed for agility. With a compact frame and lightweight body, it's perfect for navigating narrow aisles and tight corners — no need for large turning radiuses or complicated maneuvers.

User-Friendly Operation

  • Easy to Learn, Easy to Use: Simple control layout makes it ideal for operators of all skill levels.

  • Labor-Saving Design: Lightweight and well-balanced for smooth handling with minimal physical strain.

Affordable Investment

  • Budget-Friendly: An economical choice for startups, small warehouses, or occasional use.

  • Low Operating Costs: Compared to fully electric or larger stackers, enjoy lower upfront cost and minimal energy expenses.

Low Maintenance, High Uptime

  • Simple Structure: Fewer moving parts means fewer breakdowns and easier troubleshooting.

  • Quick Maintenance: Basic components can be easily serviced without specialized tools.

Eco-Conscious Handling

  • Manual or Semi-Electric Options: Choose the power level you need with minimal electricity use.

  • Energy-Saving Design: Operates quietly and efficiently, with no fuel consumption or emissions.

Versatile Applications

  • Multifunctional Use: Whether you're handling materials, stacking pallets, or rearranging storage areas, this compact stacker adapts to various warehouse needs.

  • Indoor-Friendly: Ideal for retail stockrooms, small warehouses, logistics hubs, and production floors.
